AVer CAM570 Video Conference Camera (4K Dual Lens Audio Tracking | 36X Zoom | Dynamic Dection | Touchless Control | Smart Gallery)

Specifications

• Dual Camera

  • PTZ optical zoom lens
  • Image sensor: Sony 4K EXMOR, crystal clear in any lighting
  • Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
  • 36X Zoom*: 12X optical; 3X digital zoom
  • Wide field of view: DFOV 90°/ HFOV 82°/ VFOV 52°
  • Lens focal length: 3.4mm (wide) ~ 40.3mm (tele)
  • Lens F#: 1.8 (wide) ~ 3.6 (tele)
  • Wide Dynamic Range (WDR): Superb backlight compensation technology for optimizing light balance in high-contrast conditions
  • Minimum focus distance: 1.5m
  • Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
  • Preset number: 10 via IR remote, 128 via RS232
  • Image flip and image mirror
  • Secondary fixed lens (AI lens)
  • Image sensor: Sony 4K EXMOR
  • Frame rates and resolution set according to PTZ lens settings
  • Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°
  *Please use PTZApp 2 to set up 36X zoom
  *Please don't put the CAM570 on the table. This will block the view of AI lens and the AI detection function will malfunction. The suggested installation height is 1.5m away from the floor.

• Innovative features

• SmartSpeaker: automatically track human voice and focus on the speaker
• Dynamic detection: secondary AI lens detects all participants
• new participants trigger PTZ lens to dynamically frame all participants.
• Presentation tracking: voice-triggered tracking speaker with both preset area and people tracking*
• Simultaneous 3-way output: USB, HDMI and IP connections
• Gesture control provides intuitive camera controls
• Smart gallery** function offers great visibility for individual participant in the meeting room
• Cableless access to meetings: Get rid of USB cable connections with AVer virtual USB streaming technology** (One RJ45 cable transfers IP streaming to USB.)
• 3rd party audio tracking support***: Integration with 3rd party ceiling microphone (Shure/ Sennheiser/ Yahama) via AVer Preset Link** function.

• * Make sure preset areas are within AI lens' view.
  ** Please download PTZApp 2 to set up Smart gallery, USB virtual streaming and Preset Link functionality
  *** While CAM570 already offers audio tracking function, we still integrate with 3rd party ceiling microphone for more audio tracking settings via the PTZApp 2 on PC.

• Audio Sensor

• Audio pick-up range: 10m, ±60°
• 3 pairs of sensor, each composed of 4 sensors

• * The built-in sensor is for the audio-tracking function, it cannot be used as an audio source for video-conferencing software.

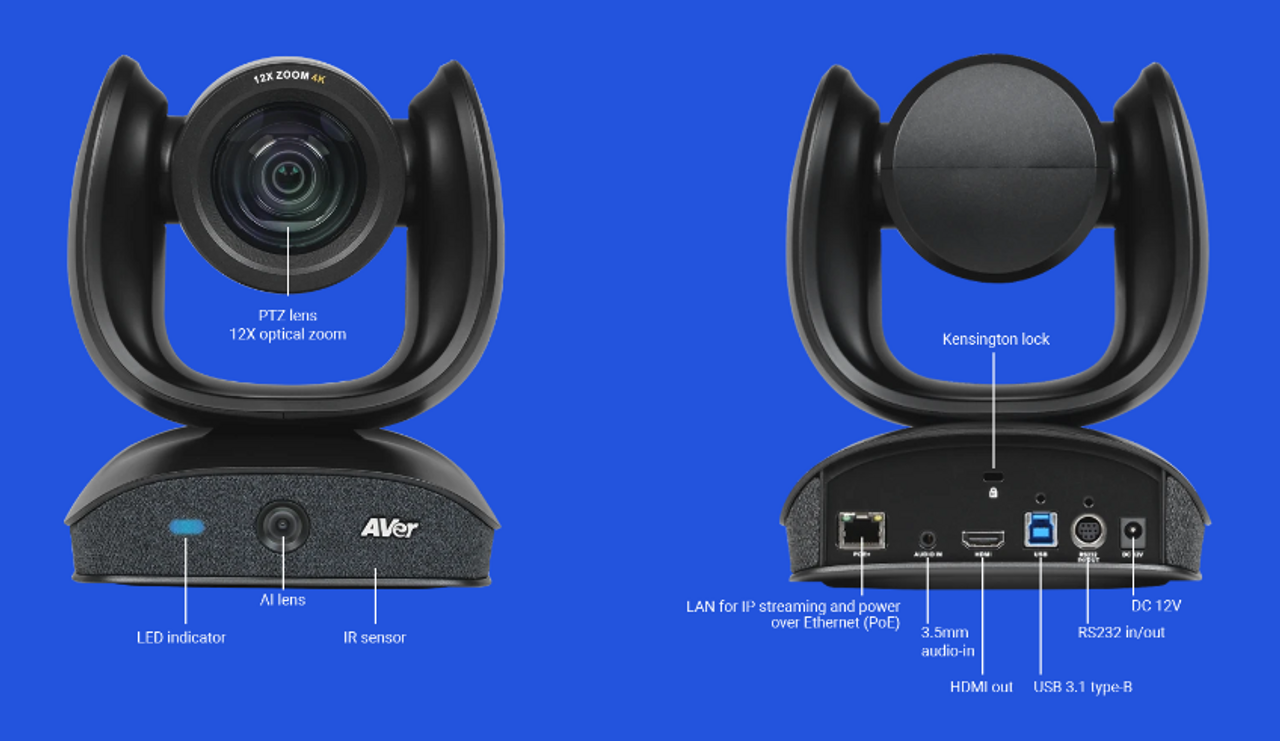

• Connectivity

• USB type-B 3.1 connector, backward compatible with USB 2.0
• 12V/2A DC jack power adapter

• *To avoid tracking the speakerphone, please insert speakerphone's Line-out to CAM570's Line-in port.

• HDMI & PoE

  • HDMI 1.3: 1080p 30fps/ 60fps
  • PoE+: 802.3at

• Video Format

  • YUV, YUY2, MJPEG
  • Network video compression format: H.264
  • Network protocol: RTSP, RTMP

• USB

  • 3.1 Gen 1, backward compatible with USB 2.0
  • UVC 1.1 (USB video), UVC1.5*
  * UVC1.5 utilizes a different platform environment and requires an extra FW upgrade. Please contact technical support for more details.

• Control

  • IR remote control
  • VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
  • Remote side: VISCA over IP, IP (RJ45)
  • UVC plug and play
  • WebUI: Browser IP access via Chrome. (Not support IE)
  • OSD setting: HDMI out to TV monitor
  • PTZApp 2

• Power Supply

  • AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
  • PoE+: 802.3 at
•
• Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
• IP (RJ45)
• HDMI
• Audio line-in*
