| CPU SUPPORT |
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports Socket AM4 |
| CHIPSET |
AMD X570 |
| MEMORY (RAM) |
4x DDR4 memory slots, support up to 128GB
Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Max frequency by A-XMP OC mode:
For Ryzen™ 5000 G-Series & 4000 G-Series processors
1DPC 1R Max speed up to 5300 MHz
1DPC 2R Max speed up to 4266 MHz
2DPC 1R Max speed up to 4400 MHz
2DPC 2R Max speed up to 3600 MHz
For Ryzen™ 5000 Series & 3000 Series processors
1DPC 1R Max speed up to 5100 MHz
1DPC 2R Max speed up to 4000 MHz
2DPC 1R Max speed up to 4000 MHz
2DPC 2R Max speed up to 3600 MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory |
| ONBOARD GRAPHICS |
1x HDMI™ 2.1 port, supports a maximum resolution of 4K @ 60Hz
*Available only on processors featuring integrated graphics |
| EXPANSION SLOTS |
Supports PCIe 4.0 / PCIe 3.0
PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
1x PCIe x16 slot (From processor)
PCI_E1 supports x16 for AMD Ryzen™ 5000 Series,5000 G-Series, 4000 G-Series, 3000 Series and 2000 Series desktop processors
PCI_E1 supports x8 for AMD Ryzen™ 2000 G-Series and 3000 G-Series desktop processors
2x PCIe x16 slots (From X570 chipset)
PCI_E3 supports x4
PCI_E4 supports 3.0 x1 only
1x PCIe 3.0 x1 slot (From X570 chipset) |
| MULTI-GPU |
Supports AMD CrossFire™ Technology |
| STORAGE |
3x M.2 slots (Key M)
Supports PCIe 4.0 / PCIe 3.0
PCIe 4.0 is available only on AMD Ryzen™ 5000 Series and 3000 Series desktop processors
Support SATA 6Gbps
M2_1 (From processor)
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 (From X570 chipset)
Supports 2242/ 2260/ 2280 storage devices
M2_31 (From X570 chipset)
Supports 2242/ 2260/ 2280 storage devices
SATA5 and SATA6 will be unavailable when installing M.2 PCIe SSD in the M2_3 slot. 6x SATA 6Gb/s ports (From X570 chipset) |
| RAID |
Supports RAID 0, RAID 1 and RAID 10 |
| LAN |
1x Realtek® RTL8125B 2.5Gbps LAN Controller |
| WIRELESS / BLUETOOTH |
AMD Wi-Fi 6E, Supports Bluetooth® 5.2 |
| AUDIO |
Realtek® ALC4080 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output |

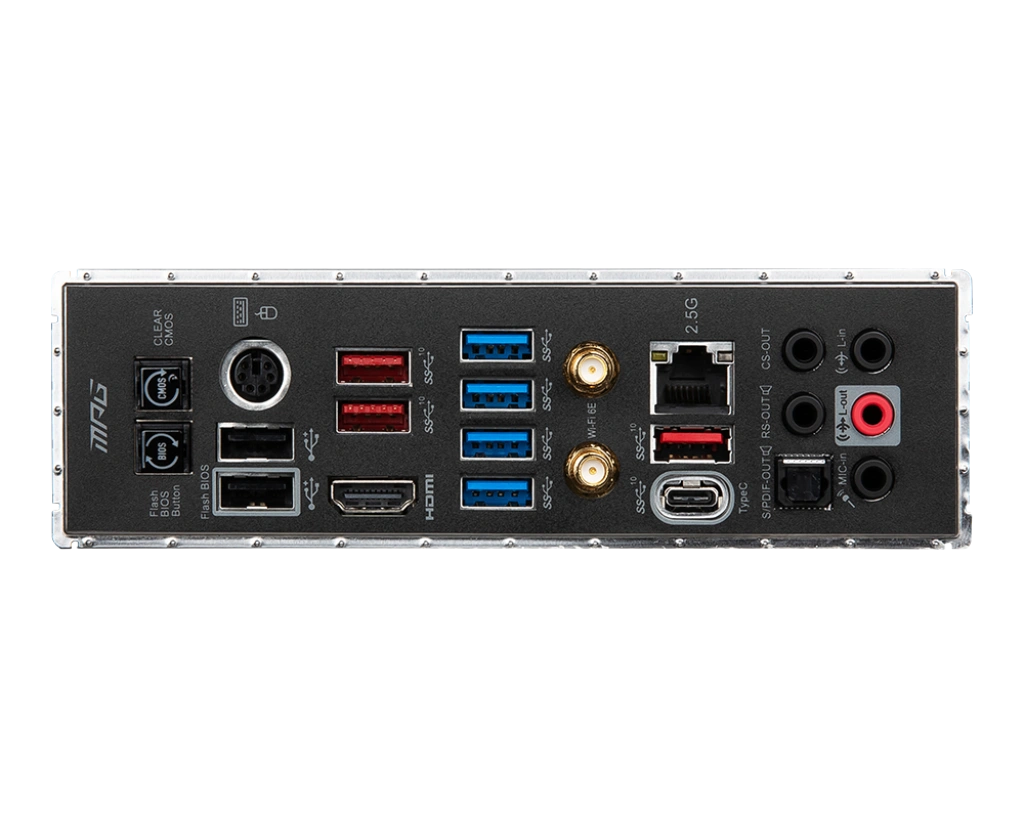

| BACK I / O PORTS |
1x Clear CMOS Button
1x PS/2
2x USB 3.2 Gen 2 10Gbps Type-A
1x 2.5G LAN
Audio Connectors
Flash BIOS Button
2x USB 2.0
1x HDMI™ 2.1
4x USB 3.2 Gen 1 5Gbps Type-A
Wi-Fi / Bluetooth
1x USB 3.2 Gen 2 10Gbps Type-C
Optical S/PDIF Out |
| LED FEATURE |
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1x EZ LED Control switch
4x EZ Debug LEDs |
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR |
ATX
305.mm x 244mm |
