| CPU SUPPORT | Supports 14th, 13th & 12th Gen Intel® Core™ Processors for LGA 1700 Socket |
| CHIPSET | Intel® B760 |
| MEMORY (RAM) |
2x DDR4, Maximum Memory Capacity 64GB Supports Dual-Channel mode |
| ONBOARD GRAPHICS | 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K @30Hz* 2x DisplayPort Support VGA, maximum resolution of 2048x1536 @ 50Hz*, 2048x1280 @ 60Hz*, 1920x1200 @ 60Hz* *Available only on processors featuring integrated graphics. |
| EXPANSION SLOTS | 1x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 3.0 supports up to (From Chipset) |
| MULTI-GPU | N/A |
| STORAGE | 1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot. |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| LAN | 1x Realtek® RTL8111H 1Gbps LAN Controller |
| WIRELESS / BLUETOOTH | N/A |
| USB | 4x USB 2.0 (Back) 4x USB 2.0 (Internal) 2x USB 3.2 Gen1 5Gbps Type-A (Back) 2x USB 3.2 Gen1 5Gbps Type-A (Internal) |
| AUDIO | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |

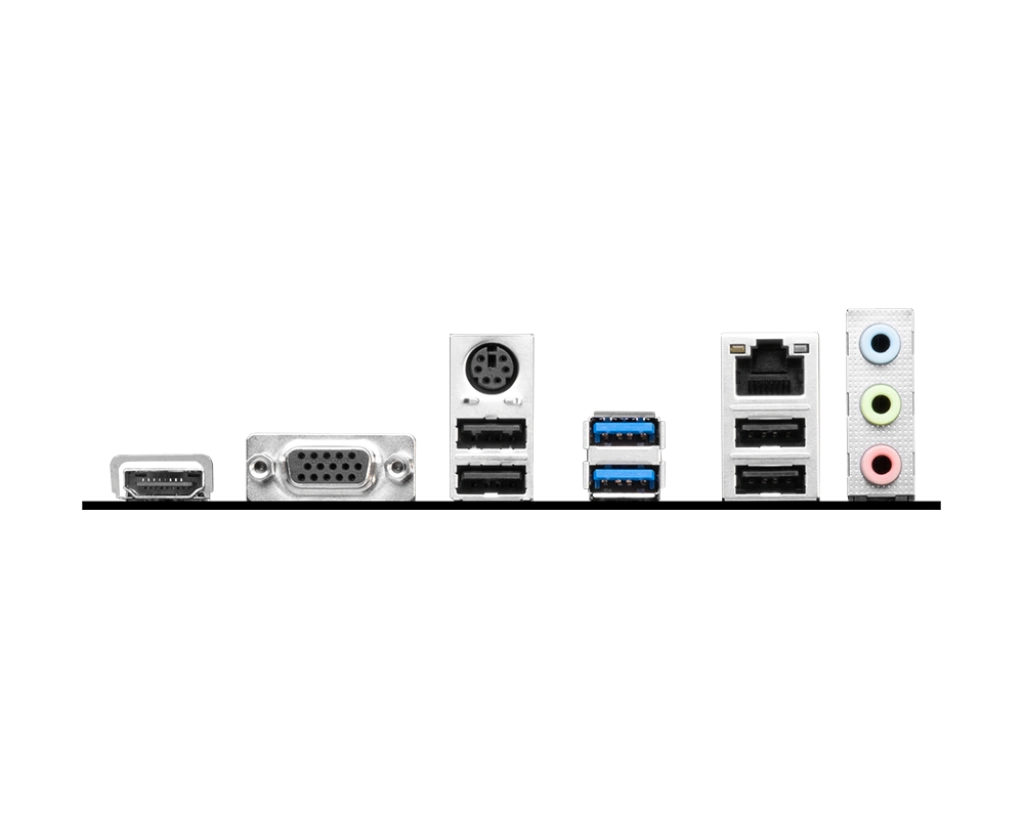

| BACK I / O PORTS | 1x PS/2 Port 1x VGA Port 1x HDMI 1.4 1x 1G LAN 4x USB 2.0 2x USB 3.2 Gen 1 5Gbps Type-A Audio Connectors |
| LED FEATURE | 4x EZ Debug LED 1x RGB LED connector(JRGB) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR | m-ATX 236.16mm x 200m |
