MSI PRO Z890-S Wi-Fi Motherboard (ATX | Support 15th / Ultra Series-2 Intel Processor | DDR5 | Gen5 SSD | Thunderbolt 4 | Wi-Fi 7)

MSI PRO Z890-S Wi-Fi Motherboard (ATX | Support 15th / Ultra Series-2 Intel Processor | DDR5 | Gen5 SSD | Thunderbolt 4 | Wi-Fi 7) | Availability: In Stock

Form Factor: It follows the ATX form factor, ideal for most mid-tower and full-tower cases.
PCI-E Slots: Includes a reinforced PCI-E x16 slot, two PCI-E x4 slots, and one PCI-E x1 slot for multiple expansion options.
Graphics Output: Offers HDMI 2.1 and DisplayPort 1.4 for high-definition video output.
Thunderbolt 4: Equipped with a Thunderbolt 4 port, supporting up to 8K video at 60Hz and rapid data transfer.
RAM Support: Has four RAM slots supporting up to 256GB of DDR5, with speeds from 4800 MHz to 8600+ MHz.
M.2 Slots: Comes with three M.2 slots (1 Gen5 + 2 Gen5), optimized for the fastest NVMe SSDs.
SATA & RAID: Features four SATA ports with RAID 0, 1, 5, and 10 support for diverse storage configurations.
USB Ports: Includes two USB 3.2 Gen2x2 Type-C, eight USB 3.2 Gen1, and four USB 2.0 ports for extensive connectivity.
Networking: Supports Realtek® 2.5Gbps LAN and Intel® Wi-Fi 7 with Bluetooth 5.4 for high-speed wired and wireless networking.
Audio: Utilizes Realtek® ALC897 Codec to deliver 7.1 channel HD audio for immersive sound.
Power Connectors: Has dual 8-pin CPU power connectors and an additional 8-pin PCIe connector for reliable power.
Power System: Offers a 12+1+1+1 digital CPU power phase for consistent, stable power delivery to the CPU.

0 Ratings 0 Answered Questions

Brand:MSI |

Share Buttons

NPR. 43,450 Rs. 47,800 9.10%

Quantity

Delivery Options

cash on delivery

Home Delivery

1 to 2 days Days

Shipping Price : NPR. 100/kg

Cash on Delivery Available

Return

within 7 days days easy return Change of mind is not applicable

1 Year

Recommended for you

MSI PRO Z790-P Wi-Fi DDR5 (ATX | Support 12th, 13th & 14th Gen Intel Processor | Wi-Fi 6E | 2.5G LAN)

NPR. 34,550

MSI PRO B760M-P DDR5(Micro-ATX | Support 14th, 13th & 12th Gen Intel Processor | 4 RAM Slot | 2x M.2 SSD)

NPR. 20,150

MSI PRO B760M-P DDR4 (Micro-ATX | Support 14th, 13th & 12th Gen Intel Processor | 4 RAM Slot | 2x M.2 SSD)

NPR. 18,300

MSI PRO B760M-E DDR4 (Micro- ATX | Support 12th, 13th & 14th Gen Intel Processor)

NPR. 17,850

MSI PRO H610M-S DDR4 (Micro-ATX | Support 14th, 13th & 12th Gen Intel Processor)

NPR. 13,000

CPU SUPPORT	Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
CHIPSET	Intel® Z890
MEMORY (RAM)	4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 8600+ MT/s • 1DPC 2R Max speed up to 7200+ MT/s • 2DPC 1R Max speed up to 4800+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports Intel® POR Speed and JEDEC Speed Supports Memory Overclocking and Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM
ONBOARD GRAPHICS	1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOTS	4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From CPU
MULTI-GPU	-
STORAGE	3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 for M.2 NVMe storage devices
LAN	Realtek® 8125D 2.5Gbps LAN
WIRELESS / BLUETOOTH	Intel® Wi-Fi 7 + Bluetooth 5.4
USB	4x USB 2.0 (Back) 2x USB 2.0 (Internal) 2x USB 3.2 Gen1 5Gbps Type-A (Back) 2x USB 3.2 Gen1 5Gbps Type-A (Internal)
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio

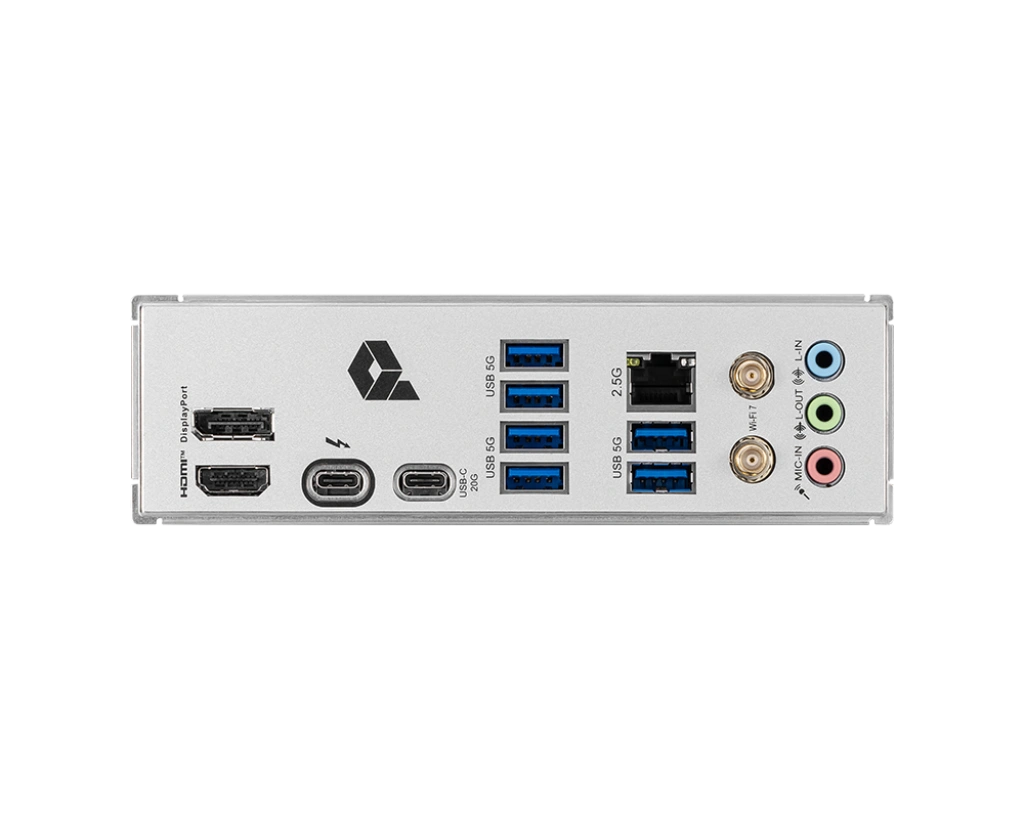

BACK I / O PORTS	1x HDMI 2.1 1x DisplayPort 1.4 1x Thunderbolt 4 / DisplayPort (Type-C) 1x 2.5 G-LAN 6x USB 3.2 Gen 1 5Gbps Type-A 1x USB 3.2 Gen 2x2 10Gbps Type-C 3x Audio Connectors
LED FEATURE	3x ARGB LED Connector 1x RGB LED connectors 4x EZ Debug LED
OPERATING SYSTEM	Support for Windows® 11 64-bit, Windows® 10 64-bit
FORM FACTOR	ATX 304.8mm x 243.84mm
