| CPU SUPPORT |
Supports 14th, 13th & 12th Gen Intel® Core™ Processors for LGA 1700 Socket |
| CHIPSET |
Intel® Z790 |
| MEMORY (RAM) |
4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333/ 5200/ 5066/ 5000/ 4800/ 4600/ 4533/ 4400/ 4266/ 4000/ 3866/ 3733/ 3600/ 3466/ 3333(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133(By JEDCE & POR)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
|
| ONBOARD GRAPHICS |
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K @ 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K @ 60Hz*
*Available only on processors featuring integrated graphics.
|
| EXPANSION SLOTS |
3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
|
| MULTI-GPU |
N/A |
| STORAGE |
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
6x SATA 6Gb/s
|
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
*SATA_A1_A2 do not support RAID function.
|
| LAN |
1x Intel® 2.5Gbps LAN |
| WIRELESS / BLUETOOTH |
Intel® Wi-Fi 6E, Supports Bluetooth® 5.3 |
| USB |
4x USB 2.0 (Back)
4x USB 2.0 (Internal)
2x USB 3.2 Gen 1 5Gbps Type-A (Back)
4x USB 3.2 Gen 1 5Gbps Type-A (Internal)
1x USB 3.2 Gen 2 10Gbps Type-A (Back)
1x USB 3.2 Gen 2 10Gbps Type-C (Internal)
1x USB 3.2 Gen 2x2 20Gbps Type-C (Back) |
| AUDIO |
Realtek® ALC897 Codec
7.1-Channel High Definition Audio |

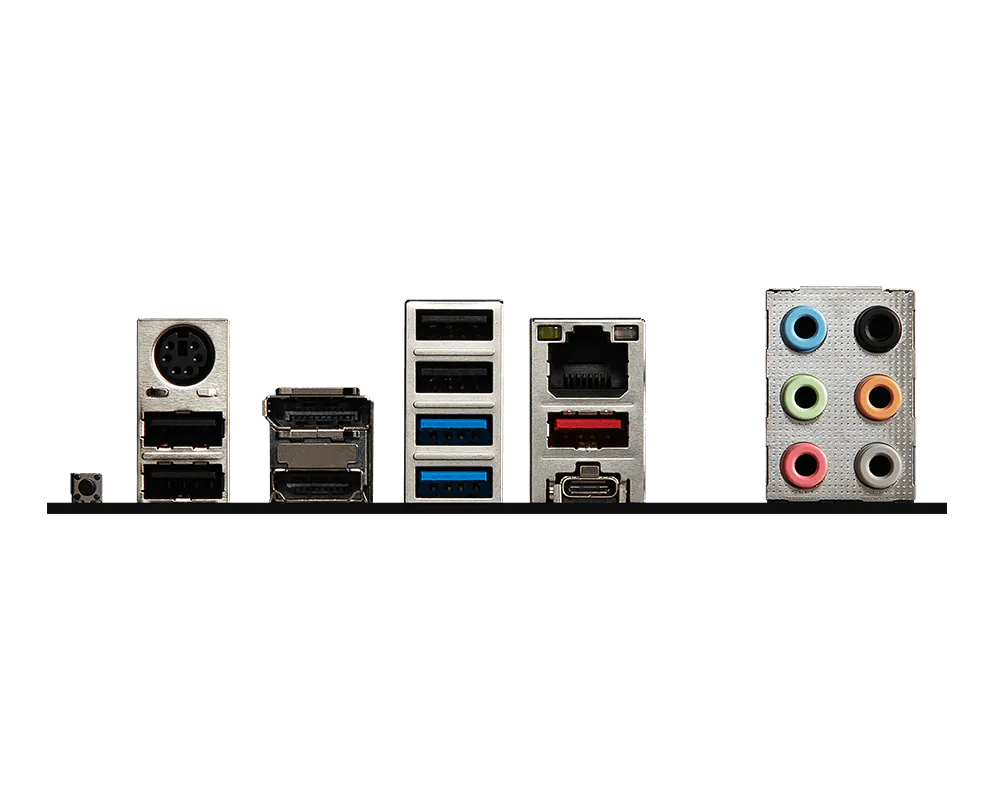

| BACK I / O PORTS |
1x PS/2 Port
1x DisplayPort 1.4
4x USB 2.0
1x 2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
1x HDMI™ 2.1
2x USB 3.2 Gen 1 5Gbps (Type-A)
1x USB 3.2 Gen 2x2 20Gbps (Type-C)
1x USB 3.2 Gen 2 10Gbps (Type-A)
|
| LED FEATURE |
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| FORM FACTOR |
ATX
304.8mm x 243.84mm |
